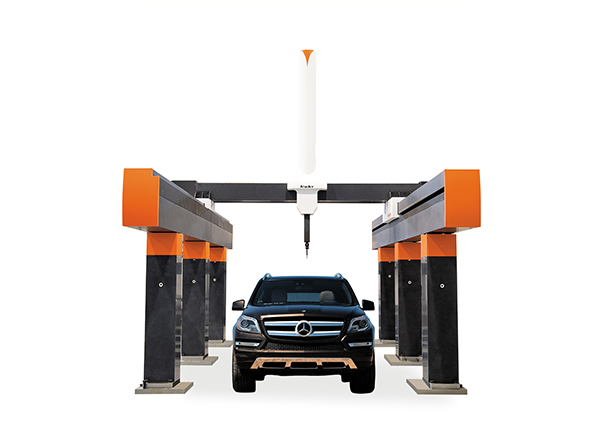

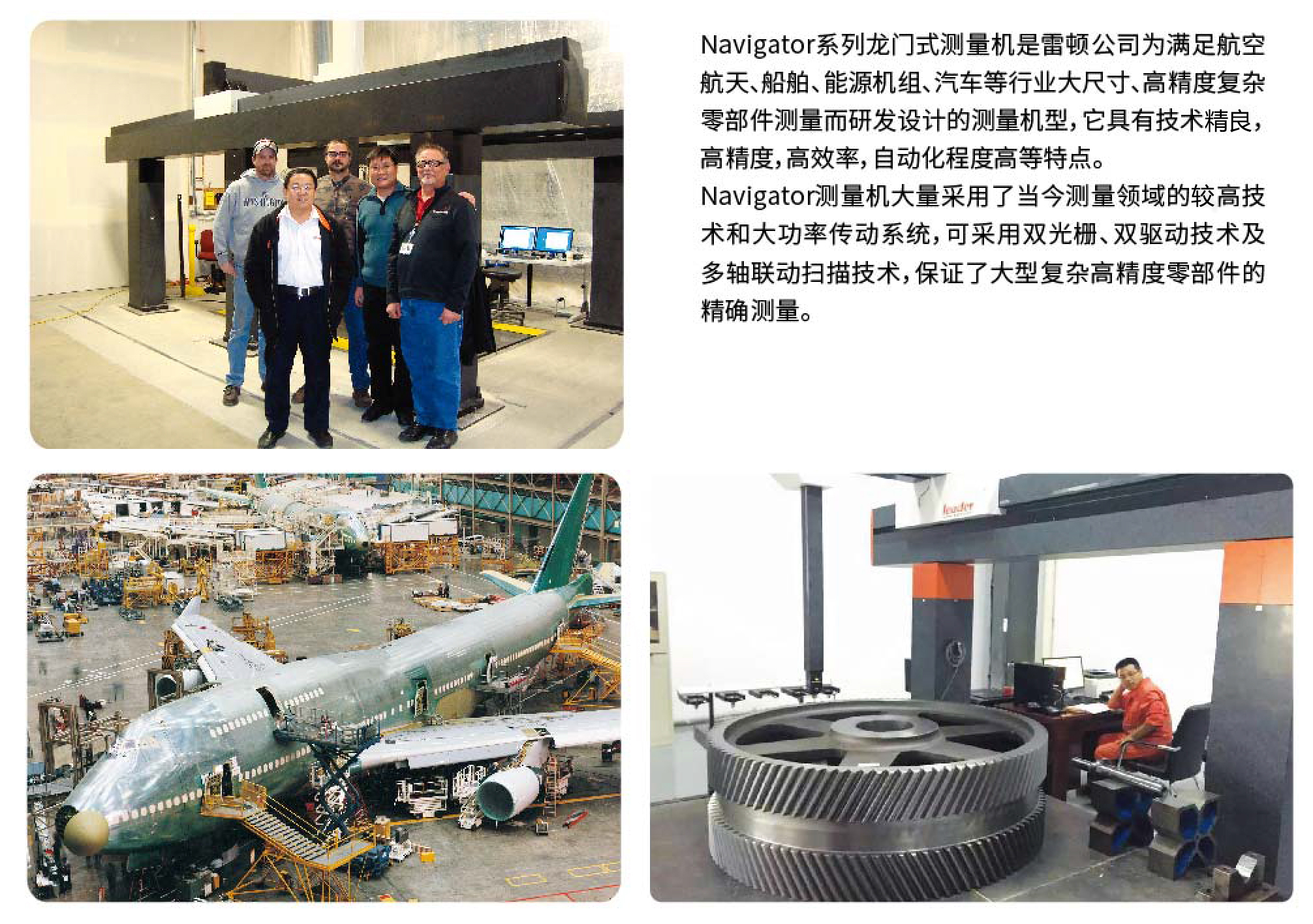

Navigator系列龍門式測量機是雷頓公司為滿足航空航天、船舶、能源機組、汽車等行業大尺寸、高精度復雜零部件測量而研發設計的測量機型,它具有技術精良，高精度，高效率，自動化程度高等特點。
Navigator測量機大量采用了當今測量領域的高技術和大功率傳動系統，可采用雙光柵、雙驅動技術及多軸聯動掃描技術，保證了大型復雜高精度零部件的精確測量。
| 型號 | 行程范圍 | MEASURING ACCURACY 精度指標 | 主機外廓尺寸 | 允許工件尺寸 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | STROKES | ISO10360-2:2009/GB/T16857.2-2006 | OVERALL SIZE | WORK ENVELOPE | |||||||||
| X | Y | Z | S | P | Lx | Ly | Lz | Wx | Wy | Wz | |||
| mm | mm | mm | MPEE(um) | MPEP(um) | MPEE(um) | MPEP(um) | mm | mm | mm | mm | mm | mm | |
| NCG203015 | 2000 | 3000 | 1500 | 4.5+4L/1000 | 4.5 | 3.5+4L/1000 | 3.8 | 3580 | 4580 | 4100 | 2350 | 3500 | 1930 |
| NCG204015 | 2000 | 4000 | 1500 | 4.5+4L/1000 | 4.5 | 3.5+4L/1000 | 3.8 | 3580 | 5580 | 4100 | 2350 | 4500 | 1930 |
| NCG205010 | 2000 | 5000 | 1500 | 4.5+4L/1000 | 4.5 | 3.5+4L/1000 | 3.8 | 3580 | 6580 | 4200 | 2350 | 5500 | 2030 |
| NCG20XX15 | 2000 | xx | 1500 | 4.5+4L/1000 | 4.5 | 3.5+4L/1000 | 3.8 | 3580 | xx | 4200 | 2350 | xx | 2030 |
| NCG253015 | 2500 | 3000 | 1500 | 6.0+6L/1000 | 6.0 | 4.0+4L/1000 | 4 | 4270 | 4580 | 4100 | 2850 | 3500 | 1930 |
| NCG254015 | 2500 | 4000 | 1500 | 6.0+6L/1000 | 6.0 | 4.0+4L/1000 | 4 | 4270 | 5580 | 4100 | 2850 | 4500 | 1930 |
| NCG255015 | 2500 | 5000 | 1500 | 6.0+6L/1000 | 6.0 | 4.0+4L/1000 | 4 | 4270 | 6580 | 4200 | 2850 | 5500 | 2030 |
| NCG25XX15 | 2500 | xx | 1500 | 6.0+6L/1000 | 6.0 | 4.0+4L/1000 | 4 | 4270 | xx | 4200 | 2850 | xx | 2030 |
| NCG203020 | 2000 | 3000 | 2000 | 5.0+5L/1000 | 5.0 | 3.5+4L/1000 | 3.5 | 3580 | 4580 | 5150 | 2350 | 3500 | 2420 |
| NCG20XX20 | 2000 | xx | 2000 | 5.0+5L/1000 | 5.0 | 3.5+4L/1000 | 3.5 | 3580 | xx | 5250 | 2350 | xx | 2520 |
| NCG255018 | 2500 | 5000 | 1800 | 6.0+6L/1000 | 6 | 4.0+4L/1000 | 4 | 4270 | 6580 | 4970 | 2850 | 5500 | 2320 |
| NCG256018 | 2500 | 6000 | 1800 | 6.0+6L/1000 | 6 | 4.0+4L/1000 | 4 | 4270 | 7580 | 4970 | 2850 | 6500 | 2320 |
| NCG253020 | 2500 | 3000 | 2000 | 6.0+6L/1000 | 6 | 4.0+4L/1000 | 4 | 4270 | 4580 | 5150 | 2850 | 3500 | 2420 |
| NCG25XX20 | 2500 | xx | 2000 | 6.0+6L/1000 | 6.0 | 4.0+4L/1000 | 4 | 4270 | xx | 52500 | 2850 | xx | 2520 |
| NCG306020 | 3000 | 6000 | 2000 | 8.0+8L/1000 | 8.0 | 4.5+4L/1000 | 4.5 | 4770 | 7580 | 5250 | 3350 | 6500 | 2520 |
| NCG30XX20 | 3000 | xx | 2000 | 8.0+8L/1000 | 8.0 | 4.5+4L/1000 | 4.5 | 4770 | xx | 5250 | 3350 | xx | 2520 |
| NCG356015 | 3500 | 6000 | 1500 | 10.0+10L/1000 | 10 | 5.5+5L/1000 | 5 | 5270 | 7580 | 4260 | 3850 | 6500 | 2030 |
| NCG356018 | 3500 | 6000 | 1800 | 10.0+10L/1000 | 10 | 5.5+5L/1000 | 5 | 5270 | 7580 | 4850 | 3850 | 6500 | 2320 |
| NCG356020 | 3500 | 6000 | 2000 | 10.0+10L/1000 | 10 | 5.5+5L/1000 | 5 | 5270 | 7580 | 5250 | 3850 | 6500 | 2520 |
| NCG409015 | 4000 | 9000 | 1500 | 12.0+12L/1000 | 10 | 8.0+8L/1000 | 8 | 5770 | 10460 | 4420 | 4300 | 9500 | 2130 |
| NCG459015 | 4500 | 9000 | 1500 | 12.0+12L/1000 | 10 | 8.0+8L/1000 | 8 | 6270 | 10460 | 4420 | 4800 | 9500 | 2130 |
| NCG509015 | 5000 | 9000 | 1500 | 12.0+12L/1000 | 10 | 8.0+8L/1000 | 8 | 6770 | 10460 | 4420 | 5300 | 9500 | 2130 |
